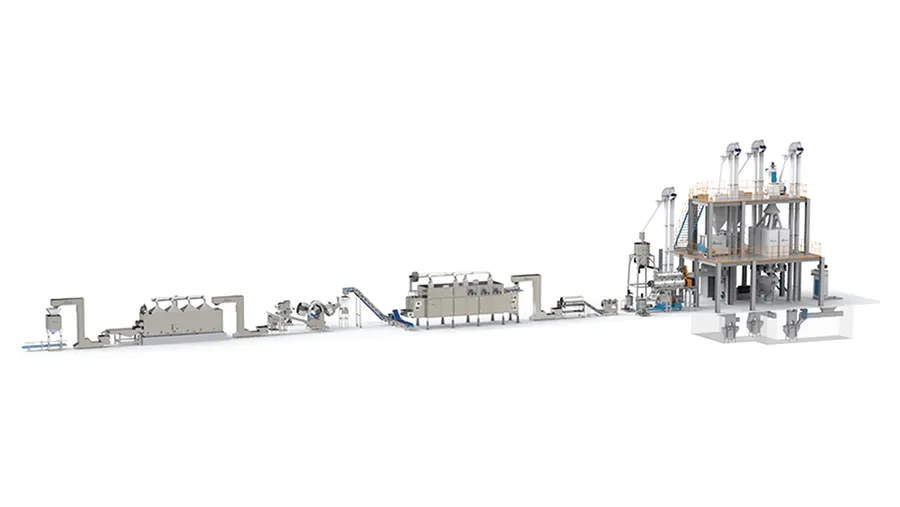

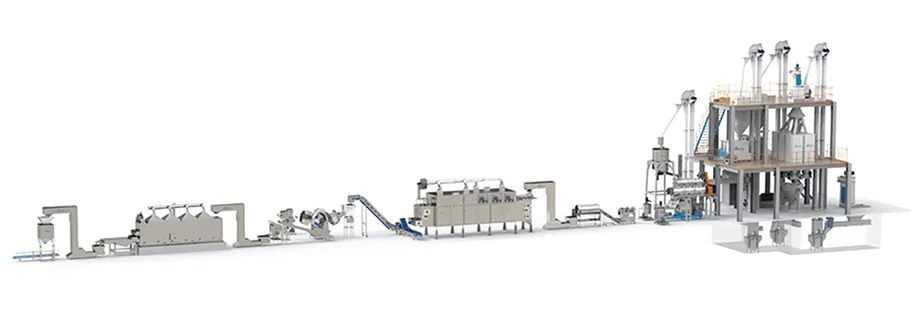

Center-Filled Pet Food Production Line
The center-filled pet food production line can manufacture a variety of pet food varieties, including regular extruded kibble and filled goods, allowing for multi-functional use on a single line. Its adaptable structure enables effective adaptability to a wide range of product development requirements, as well as rapid switching between formulas and product categories.
Capacity Range: 200–300 kg/h, 300–500 kg/h, and 800–1000 kg/h, offering flexible configurations to meet varying production scale and throughput requirements.
| Model | Capacity | Power | Production Line Footprint |
| 100-200kg/h | 18.5kw | Design can be customized according to the factory layout. | |
| 300-500kg/h | 37kw | ||
| 800-1000kg/h | 75kw |

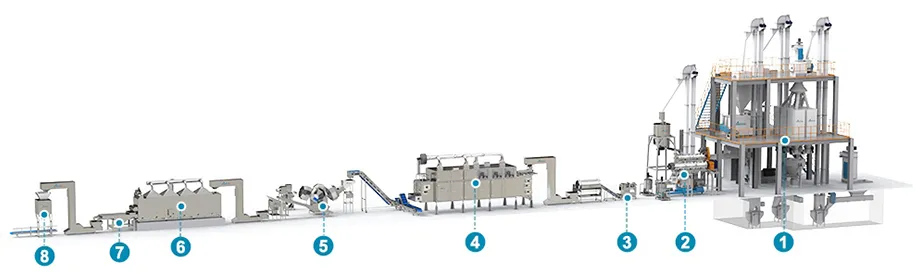

- 1. Raw Materials Receiving and Mixing
- 2. Extruding
- 3. Forming and Cutting
- 4. Drying
- 5. Coating
- 6. Cooling
- 7. Sifting
- 8. Packing
Extruding
The high L/D ratio twin-screw extruder is designed primarily for processing high fresh-meat and high-protein pet food compositions. It improves palatability and chewing performance by optimizing screw designs and extrusion settings while maintaining product quality stability. It is designed for large-scale production and successfully serves the needs of premium pet food manufacturers.
Forming & Cutting
Capable of processing multiple product strands simultaneously, increasing production capacity by 4–6 times. Product dimensions can be customized, and the system is equipped with a food-grade PU conveyor belt for easy cleaning and hygienic operation.
Drying
The servo-driven material distribution system assures even distribution and reliable operation. An integrated residue cleaning system makes maintenance easier while decreasing sanitary issues and safety hazards. The machine supports a variety of heating options, including steam, gas, and electric, allowing for easy adaption to changing production circumstances and energy requirements.
Coating
This coating system includes a rotating drum, spray tank, metering device, and rotor pump to ensure even mixing and exact application. It improves flavour distribution and overall product quality, allowing for consistent and high-standard production results.
