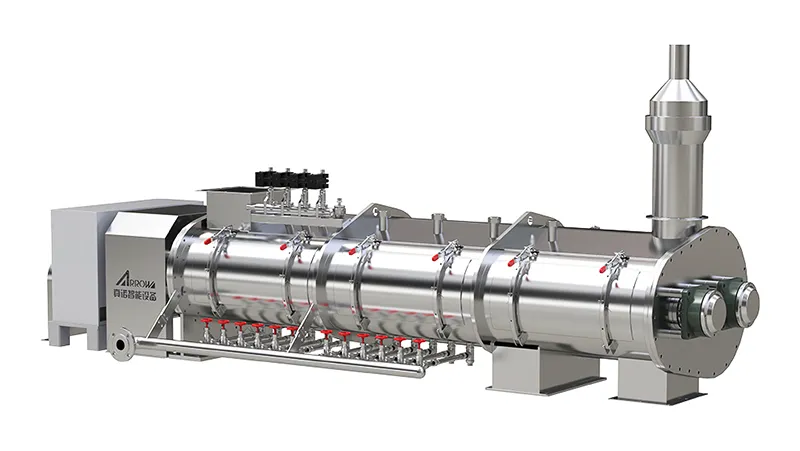

Twin-Shaft Conditioner

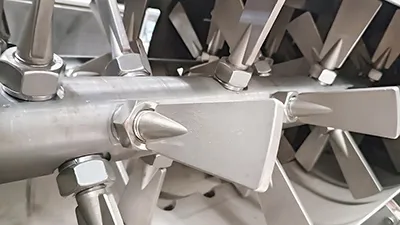

The twin-shaft differential-diameter conditioner (DDC) moves powdered feed in a "figure-eight" pattern, rotating and moving forward to maximize motion length and provide a wide range of configurable axial speeds. A typical 2-meter double-shaft conditioner provides conditioning times ranging from a few tens of seconds to 240 seconds, with pre-conditioning degrees of 50-60%, making it ideal for special pellet meals that require high pre-conditioning and sterilization levels. The paddles' relative motion also enables powerful self-cleaning, which reduces feed residue.
Specifications
| Model | Motor Power | Moisture Content (Processing Range) | Overall Dimensions |
| 18.5kW | ≤17% | 3800×1700×1800mm | |
| 15kW | ≤17% | 4200×1100×1400mm | |
| 11kW | ≤17% | 3600×1000×700mm | |
| 7.5kW | ≤17% | 3100×900×1100mm |
Details
As a trusted food equipment manufacturer, Shandong Arrow specializes in the design and manufacture of food extrusion machines and complete processing lines for breakfast cereals, puffed snacks, plant based protein, pet kibbles, pet treats and other extruded food products. Backed by over 30 years of deep industry expertise, we integrate advanced food extrusion technology with supporting industrial food processing machines for mixing, drying, milling, seasoning, coating, frying and cooling. We deliver custom-engineered food production lines that are CE and TUV compliant to maximize production output for food processors, pet food manufacturers, R&D institutes, and industrial distributors worldwide.
