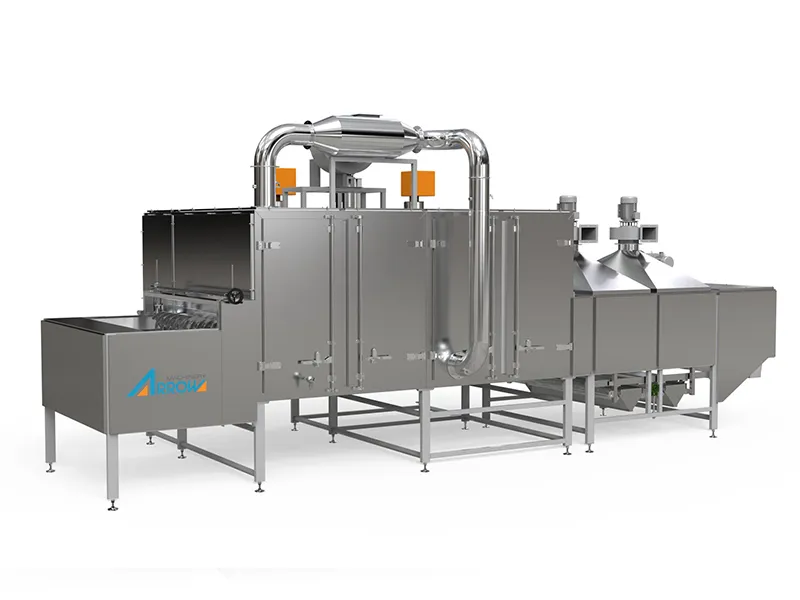

Stainless Steel Plate Belt Dryer

This stainless steel conveyor belt dryer is designed with a single-layer drying process that can effectively minimize material breakage. Due to its construction of 304 stainless steel in product-contact area, this food drying machine ensures robust durability and compliance with strict sanitary standards.

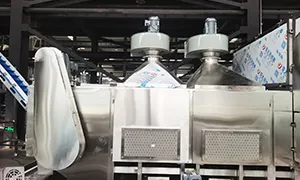

The belt dryer is featured by an integrated air circulation system paired with an air distribution structure that ensures uniform hot air coverage, thereby guaranteeing consistent product quality across every batch. This food drying system is highly flexible in its configurations, offering an optional integrated cooling unit to adapt to diverse production requirements.

Specifications

Model	Capacity	Heating Method	Dimensions	Drying Time	Power
GDHL1200-4R	0.3-0.5t/h	Gas Heating	5880×1650×3140mm	40-100s	8.45kW
GDHL1200-4Z	0.3-0.5t/h	Steam Heating	5880×1650×3140mm	40-100s	8.45kW
GDHL1200-4D	0.3-0.5t/h	Electric Heating	5880×1650×3140mm	40-100s	88.45kW
GDHL1800-4R	1t/h	Gas Heating	9000×3800×3900mm	60s-300s	21.15kW
GDHL1800-4Z	1t/h	Steam Heating	9000×3800×3900mm	60s-300s	21.15kW
GDHL1800-4D	1t/h	Electric Heating	9000×3800×3900mm	60s-300s	141.15kW
GDHL1800-8R	2t/h	Gas Heating	13000×3800×3900mm	60s-300s	35.75kW
GDHL1800-8Z	2t/h	Steam Heating	13000×3800×3900mm	60s-300s	35.75kW
GDHL1800-8D	2t/h	Electric Heating	13000×3800×3900mm	60s-300s	275.75kW

Applications
This stainless steel conveyor belt dryer is primarily used for drying and cooling of various food products, such as breakfast cereals, corn flakes, and nuts.

Features

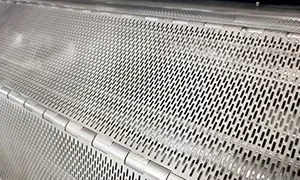

Single-layer chain plate design is adopted to minimize material breakage and maintain product integrity during the drying process.

The number of drying sections can be expanded according to production capacity requirements. The optional functions are available, such as belt cleaning and material cooling to adapt to diverse materials and processing needs.

Chain plate apertures can be custom made to ensure optimal drying efficiency, such as oval-shaped design can be tailored to specific product size, allowing for optimal hot air penetration and circulation.

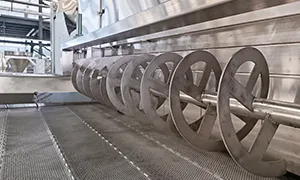

A dedicated material spreader is used to ensure uniform distribution of products across the dryer belt, thus promoting the consistent drying results.
